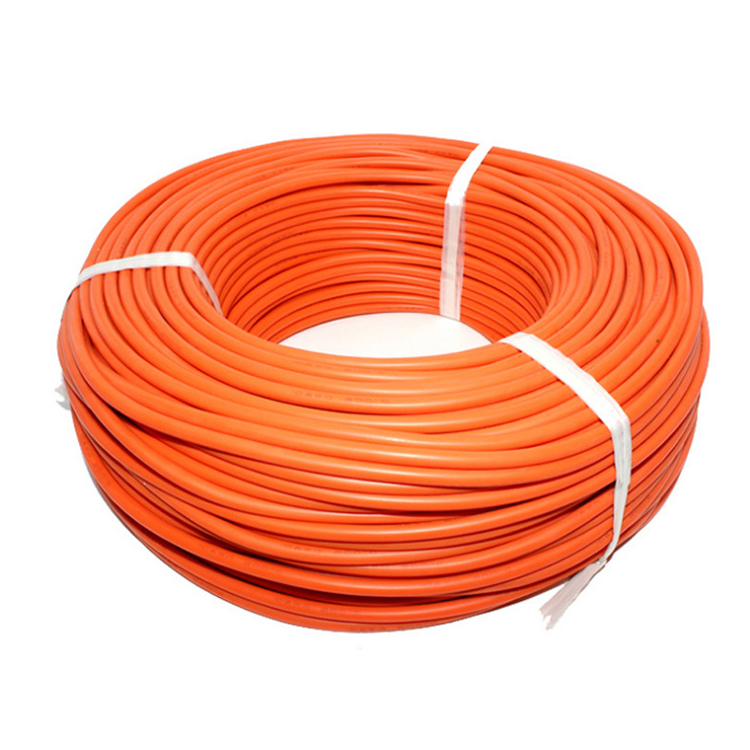

ESP10BB-K Battery Cable for Electric Energy Storage System
-
ESP10BB-K
-
Zhongxin
-
85444921
| Quantity: | |
|---|---|
Product Description
Performance Parameters
Conductor | Insulation | Jacket | MAX.COND Resistance | ||||
mm2 | (No./mm) | Nom.Dia. | Nom.Thick. | Nom.Dia. | Nom.Thick. | Nom.Dia. | (Ω/km, 20℃, DC) |
(mm) | (mm) | (mm) | (mm) | (mm) | |||
4 | 56/0.30 | 2.59 | 1 | 4.65 | 1.2 | 7.1 | 5.09 |
6 | 84/0.30 | 3.17 | 1 | 5.25 | 1.3 | 7.95 | 3.39 |
10 | 78/0.40 | 4.08 | 1 | 6.2 | 1.4 | 9.1 | 1.95 |
16 | 126/0.40 | 5.59 | 1 | 7.7 | 1.5 | 10.9 | 1.24 |
25 | 196/0.40 | 6.95 | 1.2 | 9.5 | 1.6 | 12.8 | 0.795 |
35 | 276/0.40 | 8.3 | 1.2 | 10.9 | 1.6 | 14.3 | 0.565 |
50 | 396/0.40 | 9.9 | 1.4 | 12.9 | 1.7 | 16.5 | 0.393 |
70 | 553/0.40 | 11.7 | 1.4 | 14.7 | 1.7 | 18.3 | 0.277 |
95 | 760/0.40 | 13.87 | 1.6 | 17.3 | 1.8 | 21.2 | 0.21 |
120 | 950/0.40 | 15.5 | 1.6 | 18.9 | 1.9 | 23 | 0.164 |
150 | 1178/0.40 | 17.26 | 1.8 | 21 | 1.9 | 25 | 0.132 |
185 | 1463/0.40 | 19.24 | 2 | 23.5 | 2.1 | 28 | 0.108 |
240 | 1911/0.40 | 23.4 | 2.2 | 28 | 2.3 | 32.8 | 0.0817 |
Certification |
| German Rheinland | |||||
The ESP10BB-K Battery Cable is specifically designed for use in Electric Energy Storage Systems. It has the following specifications:
Rating Temperature: The cable has a high temperature rating of 90℃, ensuring safe and efficient operation even in demanding conditions.
Rating Voltage: It has a DC voltage rating of 1000V, making it suitable for use in electric energy storage systems.
Reference Standard: The cable complies with the 2PfG 2693/06.19 standard, ensuring quality and safety.
Conductor: The cable is available with tinned or bare, stranded or solid copper conductors in sizes ranging from 16mm2 to 95mm2, providing excellent conductivity and flexibility.
Insulation: It is insulated with lead-free EP insulation, meeting the requirements of the ROHS directive and ensuring environmental friendliness.
Jacket: The cable has a lead-free CPE jacket, also compliant with the ROHS directive, providing protection and durability.
The ESP10BB-K Battery Cable offers several product features that enhance its performance and ease of use. The uniform insulation thickness ensures easy stripping and cutting, making installation and maintenance convenient. The cable has passed the IEC60332-1 vertical flame test, ensuring fire safety.
This cable is specifically designed for use on the direct current (D.C.) side of battery energy storage systems. It is suitable for connecting batteries and other components within the system, providing a reliable and efficient power connection. Its high temperature and voltage ratings make it ideal for the demanding conditions of energy storage systems.
The ESP10BB-K Battery Cable is a reliable and high-quality solution for electric energy storage systems. Its compliance with international standards, such as the 2PfG 2693/06.19, ensures its performance and safety. Whether used in residential, commercial, or industrial applications, this cable provides a secure and efficient power connection for battery energy storage systems.
- Uniform Insulation Thickness: The cable features uniform insulation thickness, ensuring easy stripping and cutting during installation.
- Flame Resistance: The cable has passed the IEC60332-1 vertical flame test, making it suitable for use in environments where fire resistance is crucial.
- Application: The cables are specifically designed for use at the direct current (D.C.) side of battery energy storage systems, providing reliable and efficient electrical connections.
- Conductor: Tinned or bare, stranded or solid copper, 16~95mm²
- Insulation: Lead-free EP insulation, ROHS compliant
- Jacket: Lead-free CPE jacket, ROHS compliant
- Temperature Rating: 90℃
- Voltage Rating: DC 1000V
- Standard: 2PfG 2693/06.19
