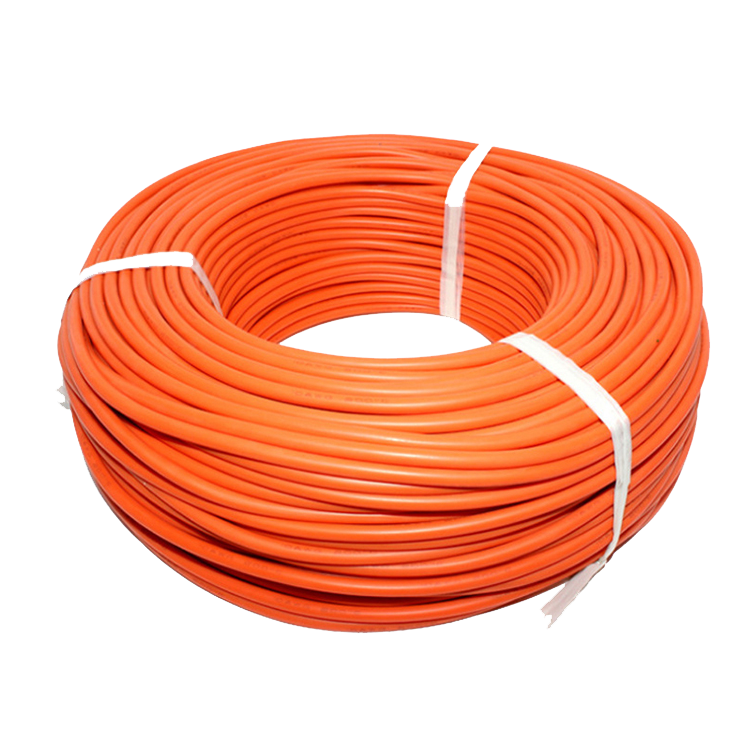

ESP15BB-K Battery Cable for Electric Energy Storage System
-
ESP15BB-K
-
Zhongxin
-
85444921
| Quantity: | |
|---|---|
Product Description
The ESP15BB-K Battery Cable is a high-performance, energy storage cable specifically designed for the direct current (DC) side of Battery Energy Storage Systems (BESS). This cable ensures secure, efficient, and safe electrical connections within energy storage systems, making it an ideal choice for modern renewable energy solutions and electric energy storage applications. With its superior insulation and flame-resistant properties, the ESP15BB-K guarantees enhanced safety, reliability, and durability in demanding environments.
Product Features
Efficient Power Transmission: Designed for DC energy applications, the ESP15BB-K ensures efficient power transfer, meeting the specific needs of electric energy storage systems. The cable's construction supports optimal power flow with minimal energy loss, ensuring long-term performance.
Flame Resistance: One of the key features of this cable is its ability to pass the IEC60332-1 vertical flame test, ensuring that it meets fire safety standards. This is essential for installations where fire safety is a top priority, particularly in battery energy storage systems and other high-risk environments.
Lead-Free Insulation and Jacket: The ESP15BB-K is equipped with lead-free EP insulation and a CPE jacket, both of which comply with ROHS standards. This eco-friendly design ensures that the cable is safe for both the environment and users, providing an additional layer of protection for energy storage and renewable energy systems.
Uniform Insulation Thickness: The cable is designed with uniform insulation thickness, making it easy to strip and cut, which reduces installation time and labor costs. This feature is especially useful in large-scale energy storage projects that require efficient cable management.
Versatility: Suitable for various energy storage system configurations, this cable is designed to meet the diverse needs of both grid-connected and off-grid systems, ensuring that it can handle the demands of modern renewable energy infrastructures.
Performance Parameters
导体 Conductor | 绝缘 Insulation | 护套 Jacket | 最大导体电阻 MAX.COND Resistance (Ω/km, 20℃, DC) | |||||
导体 横截面积 mm2 | 构成 (No./mm) | 外径 Nom.Dia. (mm) | 厚度 Nom.Thick. (mm) | 外径 Nom.Dia. (mm) | 厚度 Nom.Thick. (mm) | 外径 Nom.Dia. (mm) | ||
4 | 56/0.30 | 2.59 | 1.30 | 5.25 | 1.40 | 8.10 | 5.09 | |
6 | 84/0.30 | 3.17 | 1.30 | 5.85 | 1.40 | 8.75 | 3.39 | |
10 | 78/0.40 | 4.08 | 1.50 | 7.20 | 1.40 | 10.10 | 1.95 | |
16 | 126/0.40 | 5.59 | 1.50 | 8.70 | 1.40 | 11.70 | 1.24 | |
25 | 196/0.40 | 6.95 | 1.80 | 10.70 | 1.40 | 13.60 | 0.795 | |
35 | 276/0.40 | 8.30 | 1.80 | 12.10 | 1.40 | 15.10 | 0.565 | |
50 | 396/0.40 | 9.90 | 1.80 | 13.70 | 1.40 | 16.70 | 0.393 | |
70 | 553/0.40 | 11.70 | 1.80 | 15.50 | 1.50 | 18.70 | 0.277 | |
95 | 760/0.40 | 13.87 | 2.20 | 18.50 | 1.50 | 21.80 | 0.210 | |
120 | 950/0.40 | 15.50 | 2.20 | 20.10 | 1.60 | 23.60 | 0.164 | |
150 | 1178/0.40 | 17.26 | 2.20 | 21.80 | 1.60 | 25.20 | 0.132 | |
185 | 1463/0.40 | 19.24 | 2.40 | 24.30 | 1.70 | 28.00 | 0.108 | |
240 | 1911/0.40 | 23.40 | 2.40 | 28.40 | 1.80 | 32.60 | 0.0817 | |
产品认证 Certification |
| 德国莱茵 German Rheinland | ||||||
Product Certification
The ESP15BB-K Battery Cable is certified by German Rheinland and meets international standards for quality and safety. These certifications provide confidence in the cable's reliability and performance for use in critical energy storage applications.
Product Advantage
The ESP15BB-K Battery Cable stands out in the market due to its reliable insulation, flame-resistant design, and ease of installation. Specifically developed for battery energy storage systems, this cable ensures long-lasting performance in environments that require both safety and efficiency. It provides peace of mind by adhering to stringent safety and environmental standards, making it a trusted choice for professionals in the energy storage and renewable energy sectors.
Flame Resistance: The ESP15BB-K passes the vertical flame test, making it ideal for installations in sensitive areas where fire safety is a priority.
Durability: With tinned copper conductors, this cable offers resilience against wear and tear, ensuring long-term performance under extreme conditions.
Lead-Free Insulation and Jacket: Lead-free EP insulation and a lead-free CPE jacket comply with ROHS regulations, making the cable environmentally friendly and safe for various applications.
Product Overview
Key Advantages
- Superior Durability: Built to withstand harsh conditions, the cable features robust materials that resist abrasion, oxidation, and environmental stress.
- Flame Retardancy: Certified to pass the IEC60332-1 vertical flame test, ensuring fire safety in critical installations.
- Compliance & Certifications: Adheres to 2PfG 2693/06.19 standards and ROHS regulations, guaranteeing eco-friendly and high-quality performance.
- Versatile Conductor Options: Available in tinned or bare, stranded or solid copper conductors (16–95 mm²), offering flexibility for diverse system designs.
Technical Features
- Uniform Insulation: Precision-engineered insulation ensures easy stripping and cutting, simplifying installation.
- Lead-Free Materials: Both insulation (EP) and jacket (CPE) are lead-free, aligning with global environmental standards.
- High Voltage Rating: Rated for DC 1500V, suitable for high-capacity battery systems.
- Temperature Resilience: Operates reliably at temperatures up to 90℃, maintaining stability under thermal stress.
Applications
- Battery Energy Storage Systems (BESS): Critical for DC-side connections in solar, wind, and grid-scale storage.
- Industrial Energy Solutions: Ideal for connecting battery modules, inverters, and charge controllers.
- Renewable Energy Projects: Enhances safety and efficiency in off-grid and hybrid energy systems.
Transportation & Storage
- Packaging: Supplied in coils with protective wrapping to prevent damage during transit.
- Handling: Designed for easy loading/unloading; avoid sharp bends or excessive tension.
- Storage: Store in a dry, ventilated environment away from direct sunlight and corrosive substances.
Specifications
| Parameter | Details |
|---|---|
| Temperature Rating | Max. 90℃ |
| Voltage Rating | DC 1500V |
| Conductor | Tinned/bare, stranded/solid Cu |
| Conductor Size | 16–95 mm² |
| Insulation Material | Lead-free EP |
| Jacket Material | Lead-free CPE |
| Standards | 2PfG 2693/06.19, ROHS |
Customer Reviews
- "Reliable and Safe" – Engineer at a Solar ESS Project: "The ESP15BB-K cable’s flame-retardant properties and uniform insulation have made our installations safer and more efficient."
- "Durable and Easy to Install" – Technician at a Wind Energy Site: "The cable’s flexibility and robust construction saved us time during setup. It’s a top choice for high-voltage DC systems."
Conclusion
Company Advantages
Over 20 Years of Expertise: Established in 2001, Wuxi Zhonghui Cable Co., Ltd. has over 20 years of experience in the cable manufacturing industry. Our team is dedicated to producing high-quality cables for energy storage systems, renewable energy projects, and other industrial sectors.
Comprehensive Management System: We maintain a robust quality management system that ensures the consistent production of high-performance cables. We conduct daily production meetings and weekly summaries to ensure that operations run smoothly.
Global Certifications: Our cables are certified by renowned international bodies such as VDE, UL, and ETL, ensuring compliance with global standards.
Diverse Product Range: We offer a comprehensive range of products to meet the varied needs of our customers, including cables for new energy vehicles, solar power systems, wind energy, and more.
Company Details
Located in the picturesque Xishan District of Wuxi, Wuxi Zhonghui Cable Co., Ltd. enjoys excellent access to transportation hubs like the Shanghai-Nanjing Expressway and Wuxi Airport, making logistics smooth and efficient. Our factory covers an area of over 15,000 square meters and has more than 120 employees.
We specialize in manufacturing high-quality cables for a variety of industries, including electric power, industrial automation, new energy vehicles, and construction. Our products are trusted by professionals in fields like electricity, robotics, and household appliances.
FAQ
Q1: Which port is the nearest from you?
A1: Only 40 minutes from Shanghai by high-speed rail
Q2: What's the leading time?
A2: Delivery will be arranged within 1-3 weeks after advance payment
Q3：What's the After-service time?
A3：We will reply Within 12 hours as soon as possible
