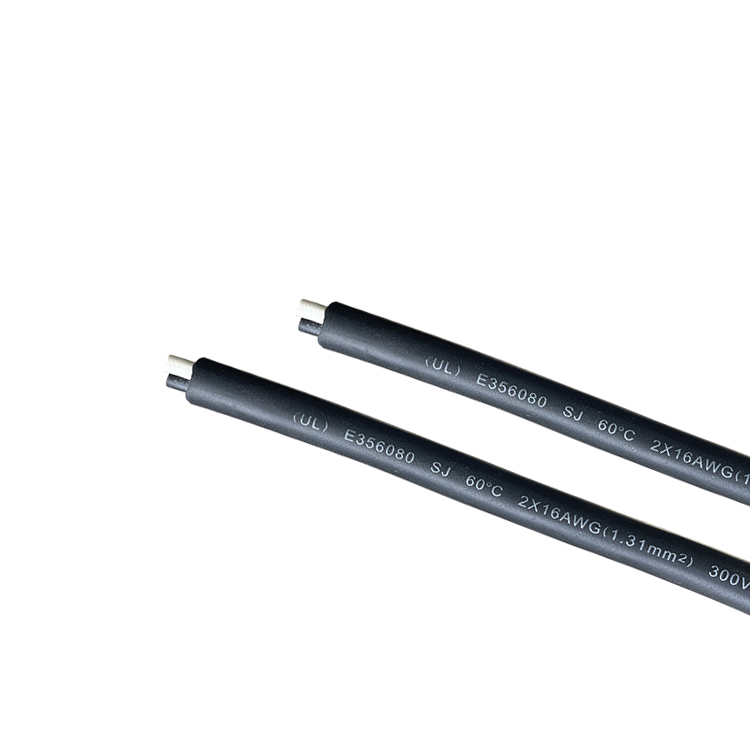

SJ Non-oil-resistant heavy-duty rubber sheathed cord
-
SJ
-
zhongxing
-
854442
| Quantity: | |
|---|---|
Product Description
Rating Temp 60℃, 75℃, 90℃, 105℃
Rating Volt. 300V
Reference standard UL62, UL2556
Conductor Stranded bare or tinned copper conductor
Insulation EPR, PASS ROHS
Jacket CPE, PASS ROHS
Application Internal & exterior wiring for electronic appliances, power instruments and auto equipments
Performance Parameter
规格 C×AWG | 绝缘 Insulation | 护套 Jacket | 最大导体电阻 Max Resistance (Ω/km, 20℃) | ||||
厚度 Nom.Thick. (mm) | 外径 Nom.Dia. (mm) | 厚度 Nom.Thick. (mm) | 外径 Nom.Dia. (mm) | ||||
2× | 18 | 0.76 | 2.75 | 0.76 | 7.20 | 23.6 | |
16 | 0.76 | 3.05 | 0.76 | 7.80 | 14.9 | ||
14 | 0.76 | 3.50 | 0.76 | 8.70 | 9.34 | ||
12 | 0.76 | 3.95 | 1.14 | 10.30 | 5.88 | ||
10 | 1.14 | 4.60 | 1.52 | 12.50 | 3.70 | ||
3× | 18 | 0.76 | 2.75 | 0.76 | 7.60 | 23.6 | |
16 | 0.76 | 3.05 | 0.76 | 8.30 | 14.9 | ||
14 | 0.76 | 3.50 | 0.76 | 9.30 | 9.34 | ||
12 | 0.76 | 3.95 | 1.14 | 11.00 | 5.88 | ||
10 | 1.14 | 4.60 | 1.52 | 13.10 | 3.70 | ||
4× | 18 | 0.76 | 2.75 | 0.76 | 8.30 | 23.6 | |
16 | 0.76 | 3.05 | 0.76 | 9.00 | 14.9 | ||
14 | 0.76 | 3.50 | 0.76 | 10.20 | 9.34 | ||
12 | 0.76 | 3.95 | 1.14 | 12.00 | 5.88 | ||
10 | 1.14 | 4.60 | 1.52 | 14.40 | 3.70 | ||
5× | 18 | 0.76 | 2.75 | 0.76 | 9.10 | 23.6 | |
16 | 0.76 | 3.05 | 0.76 | 9.90 | 14.9 | ||
14 | 0.76 | 3.50 | 0.76 | 11.90 | 9.34 | ||
12 | 0.76 | 3.95 | 1.14 | 13.20 | 5.88 | ||
10 | 1.14 | 4.60 | 1.52 | 15.70 | 3.70 | ||
产品认证 Certification |
|
| |||||
The SJ non-oil-resistant heavy-duty rubber sheathed cord is a versatile and reliable cable designed for various applications. It has the following specifications:
Rating Temperature: Available in 60℃, 75℃, 90℃, and 105℃ options, allowing for different temperature requirements.
Rating Voltage: Suitable for use with a voltage of up to 300V.
Reference Standard: Complies with UL62 and UL2556 standards, ensuring quality and safety.
Conductor: Made of stranded bare or tinned copper conductor, providing excellent conductivity and flexibility.
Insulation: Insulated with Ethylene Propylene Rubber (EPR), which is compliant with the Restriction of Hazardous Substances (RoHS) directive.
Jacket: The cable is jacketed with Chlorinated Polyethylene (CPE), which also meets RoHS requirements.
The SJ non-oil-resistant heavy-duty rubber sheathed cord is commonly used for both internal and exterior wiring in electronic appliances, power instruments, and automotive equipment. Its robust construction and high-temperature rating make it suitable for demanding applications.
This cable offers reliable electrical performance and durability, ensuring safe and efficient power transmission. It is designed to withstand various environmental conditions and is resistant to abrasion, impact, and chemicals.
Choose the SJ non-oil-resistant heavy-duty rubber sheathed cord for your wiring needs in electronic appliances, power instruments, and automotive equipment. Trust this cable to provide reliable and long-lasting performance, meeting the highest industry standards.
Product Details: SJ Non-Oil-Resistant Heavy-Duty Rubber Sheathed Cord
Product Description:The SJ Non-Oil-Resistant Heavy-Duty Rubber Sheathed Cord is a robust and reliable electrical cable designed for demanding applications. It features a stranded bare or tinned copper conductor, providing excellent electrical conductivity and flexibility. The insulation is made of EPR (Ethylene Propylene Rubber), which has passed ROHS certification, ensuring environmental safety and compliance with international standards. The jacket is made of CPE (Chlorinated Polyethylene), also ROHS compliant, offering excellent protection against abrasion and environmental factors. This cable is rated for temperatures of 60℃, 75℃, 90℃, and 105℃, and a voltage of 300V, making it suitable for various electronic appliances, power instruments, and automotive equipment.
Product Advantages:
- Excellent Flexibility: The stranded copper conductor and flexible rubber sheath make this cable highly flexible, allowing for easy installation in tight spaces and complex wiring routes.
- Durable Construction: The EPR insulation and CPE jacket provide excellent resistance to wear, tear, and environmental factors, ensuring long-term reliability and performance.
- High Safety Standards: Compliance with UL62 and UL2556 standards guarantees that this cable meets rigorous safety and quality requirements.
- Environmental Friendliness: The ROHS-compliant materials used in the insulation and jacket ensure that this cable is safe for use in various environments and does not contribute to environmental pollution.
- Versatile Applications: Suitable for a wide range of applications, including internal and external wiring for electronic appliances, power instruments, and automotive equipment.
Product Features:
- Stranded Copper Conductor: Provides superior electrical conductivity and flexibility, ensuring efficient power transmission.
- EPR Insulation: Offers excellent insulation properties and resistance to heat, oil, and chemicals, protecting the conductor from damage and ensuring safe operation.
- CPE Jacket: Provides excellent protection against abrasion, moisture, and environmental factors, ensuring long-term durability.
- Temperature and Voltage Rating: Rated for 60℃, 75℃, 90℃, and 105℃, and 300V, this cable is suitable for a wide range of applications in different environments.
- Versatile Applications: Ideal for internal and external wiring of electronic appliances, power instruments, and automotive equipment, providing reliable and safe electrical connections.
Product Applications:This heavy-duty rubber sheathed cord is widely used in various industries and applications, including:
- Industrial Machinery: For wiring industrial machinery and equipment, ensuring reliable power transmission and safe operation in harsh environments.
- Automotive Equipment: For wiring automotive electrical systems, such as lighting, audio, and control systems, providing durable and flexible connections.
- Power Tools: For connecting power tools and equipment, ensuring reliable power transmission and safe operation.
- Outdoor Applications: Suitable for outdoor use, such as powering garden tools, outdoor lighting, and portable equipment, due to its weather-resistant properties.
Product Transportation:When transporting the SJ Non-Oil-Resistant Heavy-Duty Rubber Sheathed Cord, it is important to ensure that the cable is properly packaged and protected to prevent damage during transit. The cable should be stored in a dry and ventilated area, away from direct sunlight and moisture. During transportation, the cable should be handled with care to avoid bending or twisting, which could damage the conductor or insulation. It is recommended to use appropriate packaging materials, such as wooden reels or cardboard boxes, to provide additional protection.
Product Specifications:
- Conductor: Stranded bare or tinned copper conductor
- Insulation: EPR, ROHS compliant
- Jacket: CPE, ROHS compliant
- Temperature Rating: 60℃, 75℃, 90℃, 105℃
- Voltage Rating: 300V
- Reference Standard: UL62, UL2556
User Reviews:
- "This cable is very flexible and easy to install. It has been a reliable choice for all my industrial machinery wiring needs." - John D., Industrial Electrician
- "The EPR insulation and CPE jacket provide excellent protection, and the stranded copper conductor ensures efficient power transmission. I highly recommend this cable for automotive applications." - Sarah M., Automotive Technician
- "The ROHS compliance gives me peace of mind knowing that this cable is environmentally friendly and safe to use in my home." - Michael T., Homeowner
The SJ Non-Oil-Resistant Heavy-Duty Rubber Sheathed Cord is a reliable and versatile cable that meets the highest standards of quality and safety. Its excellent flexibility, durable construction, and wide range of applications make it an ideal choice for various industries and projects.
Company advantages
1. Established in 2001, the factory boasts over 20 years of experience in production management, ensuring a high level of expertise and efficiency.
2. The factory has a comprehensive management system in place, ensuring smooth operations and effective decision-making processes.
3. Daily production meetings and weekly summary meetings are held to ensure effective communication and coordination among the team members.
4. The factory holds various certificates, demonstrating its commitment to quality standards and compliance with regulations.
5. Quality is guaranteed at the factory, with stringent quality control measures in place to ensure that all products meet the highest standards.
Company Details
wuxi zhonghui cable co., Ltd. is located in xishan District, wuxi city, on the shore of the beautiful Taihu Lake. lt is adjacent to shanghai-Nanjing Expressway in the north, National Highway 312 in the south, and 30 kilometers away from wuxi Airport. The geographical position is superior. great accessibility. The company was founded in May 2001, covers an area of more than 15,000 square meters, has more than 120 employees, and has more than 50 million yuan in fixed assets. lt is a professional research and development, production and sales of wires, cables, plugs and power cords. of domestic enterprises.
The company mainly produces "zhongxing" brand rubber flexible cords, motor lead wires, plug power cords, new energy vehicle cords, photovoltaic cords, wind energy cables, wind energy cables, energy storage cables, drag chain cables and other special wires and cables. The products are widely used lt is used in electric power, industrial automation, new energy vehicles, new energy power generation, construction, lifiing machinery, power tools, water pumps, robot arm cables, household appliances and other industrial and civil fields.
The power cord certifications of various countries include: VDE, DEMKO, FIMKO, SEMKO, S+, SAA, KC, SABS, S-Mark, GCC, INMETRO, GS, UL,ETL, ASTA, NF, CEBEC, KEMA KEUR,NEMKO etc.
FAQ
Q1: Are you a factory or trading company?
A1: We have 21 years of manufacturing experience
Q2: What is your MOQ and sample term?
A2: Our MOQ is 1000pcs, we can offer you free samples, but you pls pay shipping costs.
Q3：What's the After-service time?
A3：We will reply Within 12 hours as soon as possible
