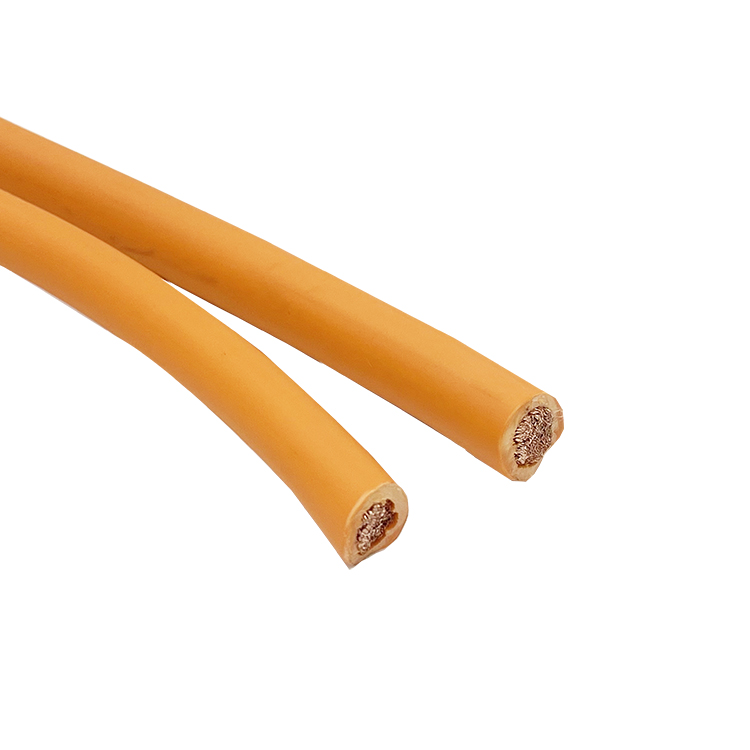

ES-RYJYJ-125 / ES-H09ZZ-F Battery Cable for Electric Energy Storage System
The ES-RYJYJ-125 / ES-H09ZZ-F Battery Cable is a high-quality cable designed for use in electric energy storage systems. It is rated for DC 900V and features a temperature range of -40℃ to +125℃. The cable uses stranded bare or tinned copper conductors and is insulated and jacketed with low-smoke, halogen-free, flame-retardant cross-linked polyolefin. It meets standards such as CQC 1143 and PPP 58049A, ensuring reliability and safety in demanding environments. The cable is suitable for applications such as power storage systems, mobile energy storage stations, and wind power storage systems, providing excellent performance in terms of heat resistance, mechanical strength, and flame retardancy. It is also environmentally friendly, meeting RoHS and REACH standards.
-
ES-RYJYJ-125 / ES-H09ZZ-F
-
Zhongxin
-
85444921
| Quantity: | |
|---|---|
Product Description
wuxi zhonghui's ES-RYJYJ-125 / ES-H09ZZ-F Battery Cable is a high-quality cable designed for use in electric energy storage systems. It is rated for DC 900V and features a temperature range of -40℃ to +125℃. The cable uses stranded bare or tinned copper conductors and is insulated and jacketed with low-smoke, halogen-free,
flame-retardant cross-linked polyolefin. It meets standards such as CQC 1143 and PPP 58049A, ensuring reliability and safety in demanding environments. The cable is suitable for applications such as power storage systems, mobile energy storage stations, and wind power storage systems, providing excellent performance in terms of heat resistance, mechanical strength, and flame retardancy. It is also environmentally friendly, meeting RoHS and REACH standards.
Specifications
Parameter | Details |
Temperature Rating | Max. 125℃ |
Voltage Rating | DC 900V |
Conductor | Tinned/bare, stranded/solid Cu |
Conductor Size | 16–95 mm² |
Insulation Material | Lead-free XLPO |
Jacket Material | Lead-free XLPO |
Standards | CQC1143, PPP58049A, ROHS |
Performance Parameters
The cable is designed to meet rigorous performance standards for electrical conductivity and flame resistance. Below is a summary of key technical parameters:
Conductor | Insulation | Jacket | MAX.COND Resistance (Ω/km, 20℃, DC) | |||||
mm2 | (No./mm) | Nom.Dia. (mm) | Nom.Thick. (mm) | Nom.Dia. (mm) | Nom.Thick. (mm) | Nom.Dia. mm) | ||
4 | 56/0.30 | 2.59 | 0.70 | 4.05 | 0.70 | 5.50 | 5.09 | |
6 | 84/0.30 | 3.17 | 0.70 | 4.65 | 0.70 | 6.10 | 3.39 | |
10 | 78/0.40 | 4.08 | 0.70 | 5.60 | 0.70 | 7.10 | 1.95 | |
16 | 126/0.40 | 5.59 | 0.70 | 7.10 | 0.70 | 8.60 | 1.24 | |
25 | 196/0.40 | 6.95 | 0.90 | 8.90 | 0.80 | 10.60 | 0.795 | |
35 | 276/0.40 | 8.30 | 0.90 | 10.20 | 0.80 | 12.00 | 0.565 | |
50 | 396/0.40 | 9.90 | 1.00 | 12.00 | 0.80 | 13.80 | 0.393 | |
70 | 553/0.40 | 11.70 | 1.10 | 14.00 | 0.90 | 16.00 | 0.277 | |
95 | 760/0.40 | 13.87 | 1.10 | 16.20 | 0.90 | 18.20 | 0.210 | |
120 | 950/0.40 | 15.50 | 1.20 | 18.00 | 0.90 | 20.00 | 0.164 | |
150 | 1178/0.40 | 17.26 | 1.40 | 20.30 | 1.00 | 22.50 | 0.132 | |
185 | 1463/0.40 | 19.24 | 1.60 | 22.60 | 1.00 | 24.80 | 0.108 | |
240 | 1911/0.40 | 23.40 | 1.70 | 27.00 | 1.10 | 29.50 | 0.0817 | |
Certification |
|
| ||||||
ES-RYJYJ-125 / ES-H09ZZ-F Battery Cable for Electric Energy Storage Systems
Product Description
The ES-RYJYJ-125 / ES-H09ZZ-F Battery Cable is designed for electric energy storage systems, offering reliable connections and safety. It features high-temperature resistance and excellent flexibility, with a voltage rating of 600V DC. Made with tinned or bare copper conductors and durable insulation, it meets ROHS standards. Suitable for rigorous environments, it provides durable performance for energy storage applications.
Product Design
This cable features stranded tinned or bare copper conductors and XLPO insulation for excellent thermal stability and flexibility. The XLPO insulation ensures high heat resistance and mechanical strength. With a temperature rating of up to 105°C and a voltage rating of 600V DC, it meets standards like IEC 6134. The uniform insulation thickness ensures easy stripping and cutting, facilitating installation. Additionally, it is flame-retardant and passes the UL VW-1 vertical flame test, making it a safe and cost-effective solution for photovoltaic systems.
Product Features
- Temperature and Voltage Rating: Rated for 125℃ and DC 900V, ensuring reliable performance in high-temperature and high-voltage environments.
- Standards Compliance: Adheres to CQC1143 and PPP58049A standards, guaranteeing quality and safety for energy storage applications.
- Conductor Type: Features tinned or bare, stranded or solid copper conductors in sizes ranging from 16 to 95mm² for excellent conductivity and flexibility.
- Insulation and Jacket: Utilizes lead-free XLPO insulation and jacketing, which are ROHS compliant, ensuring environmental safety.
- Uniform Insulation Thickness: Ensures easy stripping and cutting, facilitating efficient installation.
- Flame Resistance: Passes the IEC60332-1 vertical flame test, providing excellent fire safety.
- Application: Specifically designed for use in the direct current (D.C.) side of battery energy storage systems.
Product Advantages
- Enhanced Safety: Compliance with international standards and flame resistance ensure safe operation in demanding environments.
- Durability: High-quality materials and construction ensure long-lasting performance, even in harsh conditions.

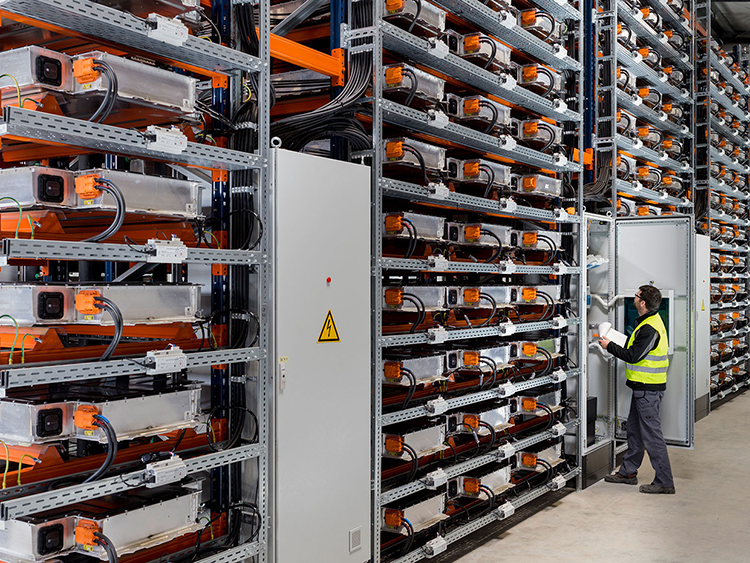

- Versatility: Suitable for various energy storage applications, including power storage systems, mobile energy storage stations, and wind power storage systems.
- Ease of Use: Uniform insulation thickness allows for easy stripping and cutting, making installation quick and efficient.
- Environmental Friendliness: ROHS compliance ensures the product is safe for the environment.
- Wide Application Range: Ideal for battery energy storage systems, providing stable and reliable performance in critical applications.
Product Applications
The cable is widely used in electric energy storage systems, such as power storage systems, mobile energy storage stations, and wind power storage systems. It connects seamlessly to in-cable control and protection devices (IC-CPD), allowing drivers to safely charge their electric vehicles without needing a dedicated circuit or EV charging station.
FAQ (Frequently Asked Questions)
1. Q: What is the ES-RYJYJ-125 / ES-H09ZZ-F Battery Cable used for?
A:
The ES-RYJYJ-125 / ES-H09ZZ-F Battery Cable is designed for use in the direct current (D.C.) side of battery energy storage systems. It is suitable for applications such as power storage systems, mobile energy storage stations, and wind power storage systems.
A:
The ES-RYJYJ-125 / ES-H09ZZ-F Battery Cable is designed for use in the direct current (D.C.) side of battery energy storage systems. It is suitable for applications such as power storage systems, mobile energy storage stations, and wind power storage systems.
2. Q: What are the key features of the ES-RYJYJ-125 / ES-H09ZZ-F Battery Cable?
A:The cable features a temperature rating of 125℃ and a voltage rating of DC 900V. It uses tinned or bare, stranded or solid copper conductors in sizes ranging from 16 to 95mm². It has lead-free XLPO insulation and jacketing, which are ROHS compliant. The cable also passes the IEC60332-1 vertical flame test.
3. Q: What applications is the ES-RYJYJ-125 / ES-H09ZZ-F Battery Cable suitable for?
A:The cable is suitable for a wide range of applications, including power storage systems, mobile energy storage stations, and wind power storage systems. It provides reliable performance in critical energy storage applications.
4. Q: How should I install and use the ES-RYJYJ-125 / ES-H09ZZ-F Battery Cable?
A:Ensure the cable is installed in accordance with local electrical codes and standards. Avoid excessive bending or stretching. Use appropriate connectors and terminations to ensure a secure connection. Regularly inspect the cable for any signs of damage or wear.
5. Q: How should I maintain the ES-RYJYJ-125 / ES-H09ZZ-F Battery Cable?
A:Regularly inspect the cable for physical damage or wear. Keep the cable clean and free from dirt and debris. Ensure connections are secure and free from corrosion. Replace the cable immediately if any damage is detected.
6. Q: Is the ES-RYJYJ-125 / ES-H09ZZ-F Battery Cable environmentally friendly?
A:Yes, the ES-RYJYJ-125 / ES-H09ZZ-F Battery Cable is environmentally friendly. It meets ROHS standards and uses lead-free materials, making it safe for the environment.
Battery Cable for Electric Energy Storage System Passed ROHS 16~95mm2 Reference standard CQC1143 PPP58049A Conductor Tinned or bare stranded or solid copper 16~95mm2 Insulation Lead free XLPO insulation Passed ROHS ES-RYJYJ-125 / ES-H09ZZ-F Rating Temp 125℃ Rating Volt. DC 900V Jacket Lead free XLPO jacket Passed ROHS
