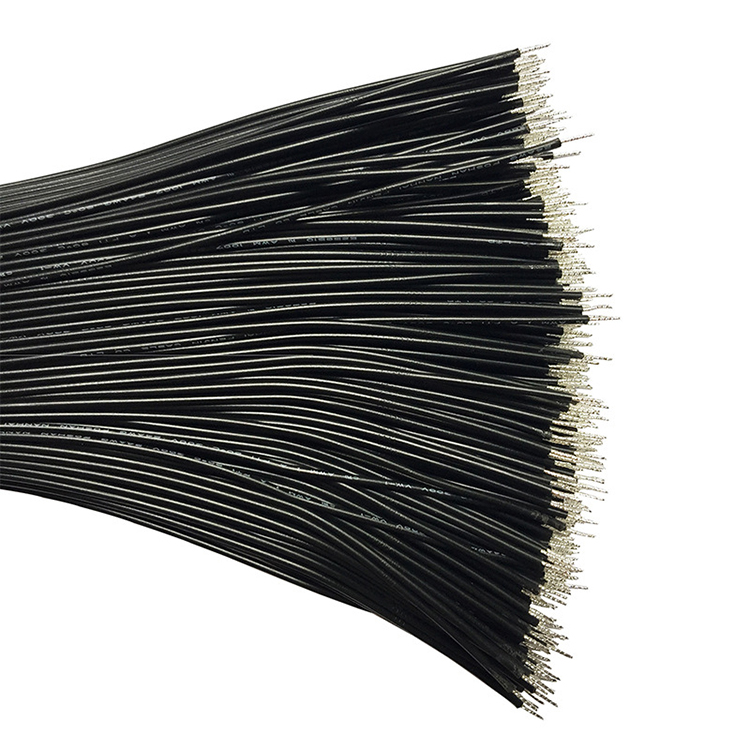

UL Style 3271 Electronic Wire
The UL Style 3271 Electronic Wire is a high-quality wire designed for internal wiring in electronic and electrical devices. It features cross-linked polyethylene (XLPE) insulation, providing excellent temperature, pressure, and aging resistance. Rated for 125°C and 600V AC/750V DC, this wire is suitable for applications such as motor leads, internal wiring of appliances, computers, test equipment, and other office and control equipment. It is available in various AWG sizes from 30 to 4/0, with options for solid or stranded, tinned or bare copper conductors. The wire is RoHS compliant and meets standards like UL 758 and CSA CL1251, ensuring reliability and safety in demanding environments
-
UL Style 3271
-
Zhongxin
-
85444221
| Quantity: | |
|---|---|
Product Description
wuxi zhonghui's The UL Style 3271 Electronic Wire is a high-quality wire designed for internal wiring in electronic and electrical devices. It features cross-linked polyethylene (XLPE) insulation, providing excellent temperature, pressure, and aging resistance. Rated for 125°C and 600V AC/750V DC, this wire is suitable for applications such as motor leads, internal wiring of appliances, computers, test equipment, and other office and control equipment. It is available in various AWG sizes from 30 to 4/0, with options for solid or stranded, tinned or bare copper conductors. The wire is RoHS compliant and meets standards like UL 758 and CSA CL1251, ensuring reliability and safety in demanding environments
Product Specifications
| Parameter | Value |
|---|---|
| Conductor | Tinned copper stranded, bare copper stranded, or single conductor (30AWG - 4/0AWG) |
| Insulation | Lead-free XLPO |
| Temperature Rating | 125℃ |
| Voltage Rating | 600V or 750V |
| Standards | UL758, UL1581 |
Performance Parameter
导体 Conductor | 绝缘 Insulation | 最大导体电阻 MAX.COND Resistance (Ω/km, 20℃, DC) | ||||
线规 AWG | 构成 (No./mm) | 外径 Nom.Dia. (mm) | 绝缘厚度 Nom.Thick. (mm) | 外径 Nom.Dia. (mm) | ||
30 | 7/0.10 | 0.30 | 0.76 | 1.90 | 381 | |
28 | 7/0.127 | 0.38 | 0.76 | 2.00 | 239 | |
26 | 7/0.16 | 0.48 | 0.76 | 2.10 | 150 | |
24 | 11/0.16 | 0.61 | 0.76 | 2.20 | 94.2 | |
22 | 17/0.16 | 0.76 | 0.76 | 2.35 | 59.4 | |
20 | 26/0.16 | 0.94 | 0.76 | 2.55 | 36.7 | |
18 | 16/0.254 | 1.15 | 0.76 | 2.80 | 23.2 | |
16 | 26/0.254 | 1.50 | 0.76 | 3.15 | 14.6 | |
14 | 41/0.254 | 1.88 | 0.76 | 3.55 | 8.96 | |
12 | 65/0.254 | 2.36 | 0.76 | 4.05 | 5.64 | |
10 | 105/0.254 | 3.10 | 0.76 | 4.90 | 3.546 | |
8 | 168/0.254 | 4.25 | 1.15 | 6.60 | 2.23 | |
6 | 266/0.254 | 5.35 | 1.15 | 7.80 | 1.403 | |
4 | 420/0.254 | 6.70 | 1.15 | 9.10 | 0.882 | |
2 | 665/0.254 | 8.45 | 1.15 | 10.90 | 0.5548 | |
1 | 836/0.254 | 9.50 | 1.40 | 12.50 | 0.4398 | |
1/0 | 1045/0.254 | 10.60 | 1.40 | 13.60 | 0.3487 | |
2/0 | 1330/0.254 | 12.00 | 1.40 | 15.00 | 0.2766 | |
3/0 | 1672/0.254 | 13.45 | 1.40 | 16.50 | 0.2194 | |
4/0 | 2109/0.254 | 14.85 | 1.40 | 17.90 | 0.1722 | |
产品认证 Certification |
|
| ||||
Product Description:
The UL Style 3271 Electronic Wire is a high-quality wire designed for internal wiring in electronic and electrical devices. It features excellent thermal stability and flexibility, making it suitable for a wide range of applications. The wire uses cross-linked polyethylene (XLPE) insulation, which is flame-retardant and passes the UL VW-1 vertical flame test. It is available in various AWG sizes from 32 to 10, with options for solid or stranded, tinned or bare copper conductors. The uniform insulation thickness ensures easy stripping and cutting, facilitating installation. Additionally, it is environmentally friendly, meeting RoHS and REACH standards.
The UL Style 3271 Electronic Wire is a high-quality wire designed for internal wiring in electronic and electrical devices. It features excellent thermal stability and flexibility, making it suitable for a wide range of applications. The wire uses cross-linked polyethylene (XLPE) insulation, which is flame-retardant and passes the UL VW-1 vertical flame test. It is available in various AWG sizes from 32 to 10, with options for solid or stranded, tinned or bare copper conductors. The uniform insulation thickness ensures easy stripping and cutting, facilitating installation. Additionally, it is environmentally friendly, meeting RoHS and REACH standards.
Product Design:

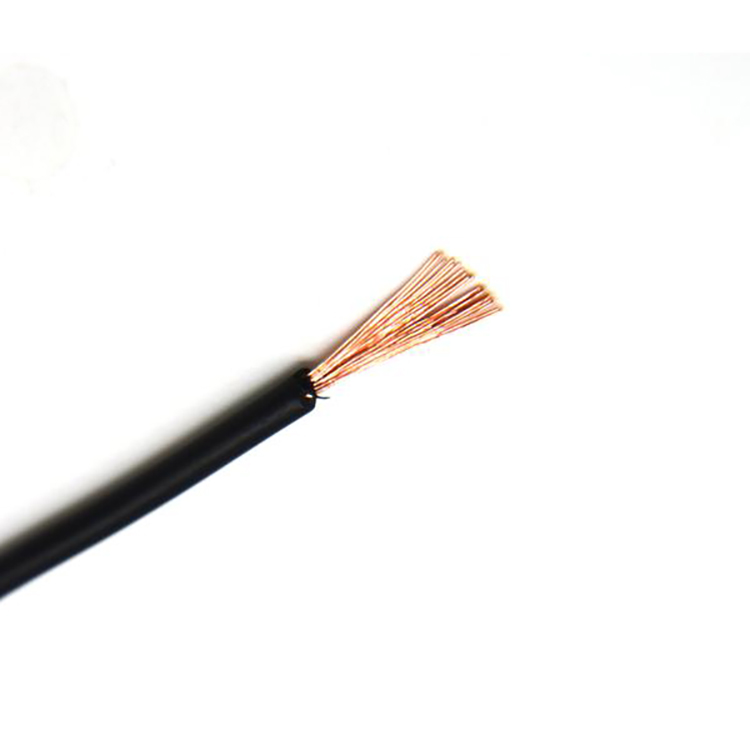

The UL Style 3271 Electronic Wire is designed with stranded bare or tinned copper conductors for excellent conductivity and flexibility. It uses cross-linked polyethylene (XLPE) insulation, ensuring high thermal stability and resistance to environmental stress. The wire is rated for temperatures up to 105°C and is suitable for both AC and DC applications. The design ensures uniform insulation thickness, making it easy to strip and cut, which enhances installation efficiency. It meets standards such as UL 758 and CSA C22.2, ensuring reliability and safety in various electrical systems.Product Advantages
Product Features
- Uniform Insulation Thickness: The wire has a uniform insulation thickness, which not only ensures easy stripping and cutting but also provides consistent electrical performance.
- Flame - Retardant: The wire has passed the UL FT2 flame test, making it highly flame - retardant and suitable for use in environments where fire safety is a concern.
- Versatile Applications: It is widely used in the internal wiring of electronic and electrical equipment, such as computers, communication equipment, and household appliances.
Product Applications:

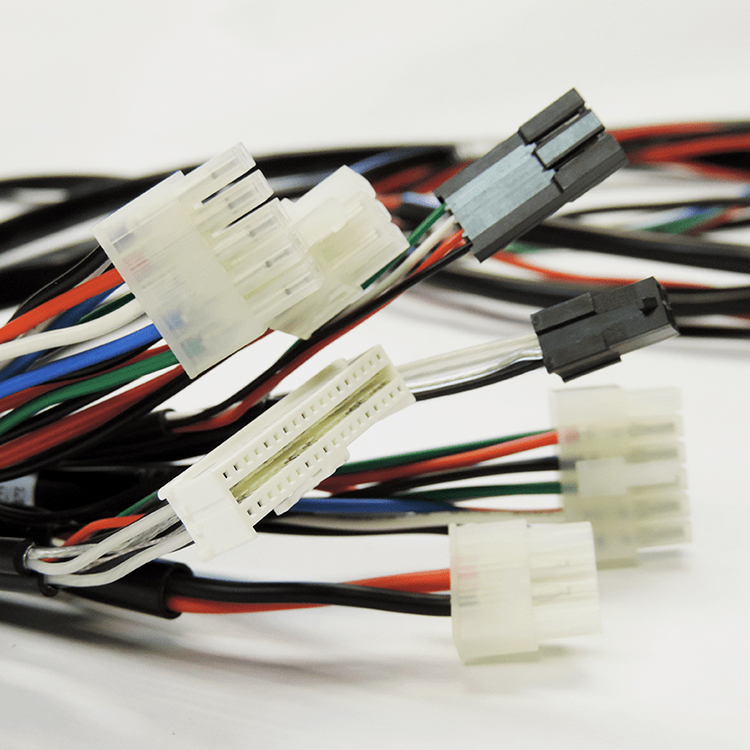

This electronic wire is widely used in household appliances, electronic instruments, communication equipment, and automotive electronics. It is ideal for connecting electronic devices and appliances to power sources, providing reliable power and signal transmission. The UL Style 3271 wire is particularly suitable for applications requiring high-temperature resistance and excellent flexibility, such as in motor leads, internal wiring of appliances, and control systems. Its durability and resistance to environmental factors make it a preferred choice for both residential and commercial applications.
This electronic wire is widely used in household appliances, electronic instruments, communication equipment, and automotive electronics. It is ideal for connecting electronic devices and appliances to power sources, providing reliable power and signal transmission. The UL Style 3271 wire is particularly suitable for applications requiring high-temperature resistance and excellent flexibility, such as in motor leads, internal wiring of appliances, and control systems. Its durability and resistance to environmental factors make it a preferred choice for both residential and commercial applications.
FAQ (Frequently Asked Questions)
1. Q: What is the UL Style 3271 Electronic Wire used for?
A:
The UL Style 3271 Electronic Wire is designed for internal wiring in electronic and electrical devices. It is suitable for applications such as motor leads, internal wiring of appliances, computers, test equipment, and other office and control equipment.
A:
The UL Style 3271 Electronic Wire is designed for internal wiring in electronic and electrical devices. It is suitable for applications such as motor leads, internal wiring of appliances, computers, test equipment, and other office and control equipment.
2. Q: What are the key features of the UL Style 3271 Electronic Wire?
A:The UL Style 3271 Electronic Wire features cross-linked polyethylene (XLPE) insulation, providing excellent temperature, pressure, and aging resistance. It is rated for 125°C and 600V AC/750V DC. It is available in various AWG sizes from 30 to 4/0, with options for solid or stranded, tinned or bare copper conductors.
3. Q: What applications is the UL Style 3271 Electronic Wire suitable for?
A:The UL Style 3271 Electronic Wire is suitable for a wide range of applications, including motor leads, internal wiring of appliances, computers, test equipment, and other office and control equipment. It provides reliable power and signal transmission for these devices.
4. Q: How should I install and use the UL Style 3271 Electronic Wire?
A:Ensure the wire is installed in accordance with local electrical codes and standards. Avoid excessive bending or stretching. Use appropriate connectors and terminations to ensure a secure connection. Regularly inspect the wire for any signs of damage or wear.
5. Q: How should I maintain the UL Style 3271 Electronic Wire?
A:Regularly inspect the wire for physical damage or wear. Keep the wire clean and free from dirt and debris. Ensure connections are secure and free from corrosion. Replace the wire immediately if any damage is detected.
6. Q: Is the UL Style 3271 Electronic Wire environmentally friendly?
A:Yes, the UL Style 3271 Electronic Wire is environmentally friendly. It meets RoHS standards and uses materials that are safe for the environment.
7. Q: What standards does the UL Style 3271 Electronic Wire comply with?
A:The UL Style 3271 Electronic Wire complies with standards such as UL 758 and CSA CL1251, ensuring quality and safety for various electrical systems.
