UL Style 3266 Electronic Wire
The UL Style 3266 Electronic Wire is a high-quality wire designed for internal wiring in electronic devices and electrical systems. It features a rated temperature of 125°C and a rated voltage of 300V AC. The wire uses cross-linked polyethylene (XLPE) insulation, which is flame-retardant and passes the UL VW-1 and CSA FT1 vertical flame tests. It is available in various AWG sizes from 30 to 10, with options for solid or stranded, tinned or bare copper conductors. The uniform insulation thickness ensures easy stripping and cutting, facilitating installation. Additionally, it is environmentally friendly, meeting RoHS standards and using halogen-free materials. This wire is widely used in applications such as motor leads, internal wiring of appliances, computers, test equipment, and other office and control equipment. Its excellent thermal stability and mechanical wear resistance make it suitable for demanding environments
-
UL Style 3266
-
Zhongxin
-
85444221
| Quantity: | |
|---|---|
Product Description
wuxi zhonghui's UL Style 3266 Electronic Wire is a high-quality wire designed for internal wiring in electronic devices and electrical systems. It features a rated temperature of 125°C and a rated voltage of 300V AC. The wire uses cross-linked polyethylene (XLPE) insulation, which is flame-retardant and passes the UL VW-1 and CSA FT1 vertical flame tests. It is available in various AWG sizes from 30 to 10, with options for solid or stranded, tinned or bare copper conductors. The uniform insulation thickness ensures easy stripping and cutting, facilitating installation. Additionally, it is environmentally friendly, meeting RoHS standards and using halogen-free materials. This wire is widely used in applications such as motor leads, internal wiring of appliances, computers, test equipment, and other office and control equipment. Its excellent thermal stability and mechanical wear resistance make it suitable for demanding environments
Product Specifications
| Parameter | Value |
|---|---|
| Rating Temp | 125℃ |
| Rating Volt. | 300V |
| Reference Standard | UL758, UL1581 |
| Conductor | Preferentially tinned copper stranded, or bare copper stranded or single conductor, 32AWG~10AWG |
| Insulation | Lead-free XLPO insulation, Passed ROHS |
Performance Parameter
导体 Conductor | 绝缘 Insulation | 最大导体电阻 MAX.COND Resistance (Ω/km, 20℃, DC) | ||||
线规 AWG | 构成 (No./mm) | 外径 Nom.Dia. (mm) | 绝缘厚度 Nom.Thick. (mm) | 外径 Nom.Dia. (mm) | ||
30 | 7/0.10 | 0.30 | 0.38 | 1.15 | 381 | |
28 | 7/0.127 | 0.38 | 0.38 | 1.20 | 239 | |
26 | 7/0.16 | 0.48 | 0.38 | 1.30 | 148.94 | |
24 | 11/0.16 | 0.61 | 0.38 | 1.43 | 93.25 | |
22 | 17/0.16 | 0.76 | 0.38 | 1.58 | 55.00 | |
20 | 26/0.16 | 0.94 | 0.38 | 1.76 | 34.60 | |
18 | 41/0.16 | 1.18 | 0.38 | 2.00 | 21.80 | |
16 | 26/0.254 | 1.49 | 0.38 | 2.32 | 14.64 | |
14 | 41/0.254 | 1.88 | 0.38 | 2.70 | 9.25 | |
12 | 65/0.254 | 2.36 | 0.38 | 3.20 | 5.82 | |
10 | 105/0.254 | 3.00 | 0.38 | 4.00 | 3.66 | |
产品认证 Certification |
|
| ||||

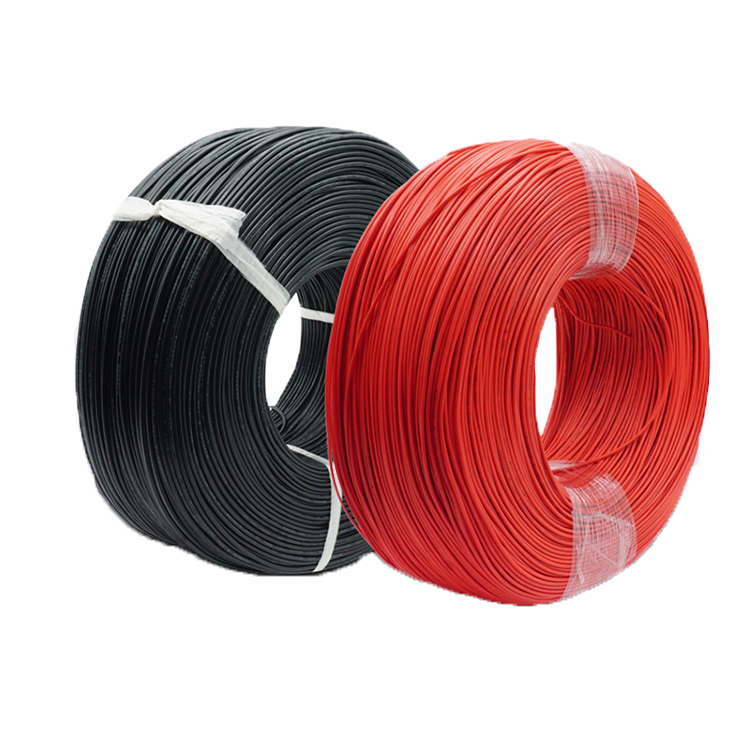

UL Style 3266 Electronic Wire
Product Description:
The UL Style 3266 Electronic Wire is designed for internal wiring in electronic and electrical devices. It features excellent thermal stability and mechanical strength, making it suitable for a wide range of applications. This wire uses PVC insulation and meets ROHS standards, ensuring environmental safety. It is available in various AWG sizes from 30 to 10, with options for solid or stranded, tinned or bare copper conductors. The uniform insulation thickness ensures easy stripping and cutting, enhancing installation efficiency.
The UL Style 3266 Electronic Wire is designed for internal wiring in electronic and electrical devices. It features excellent thermal stability and mechanical strength, making it suitable for a wide range of applications. This wire uses PVC insulation and meets ROHS standards, ensuring environmental safety. It is available in various AWG sizes from 30 to 10, with options for solid or stranded, tinned or bare copper conductors. The uniform insulation thickness ensures easy stripping and cutting, enhancing installation efficiency.

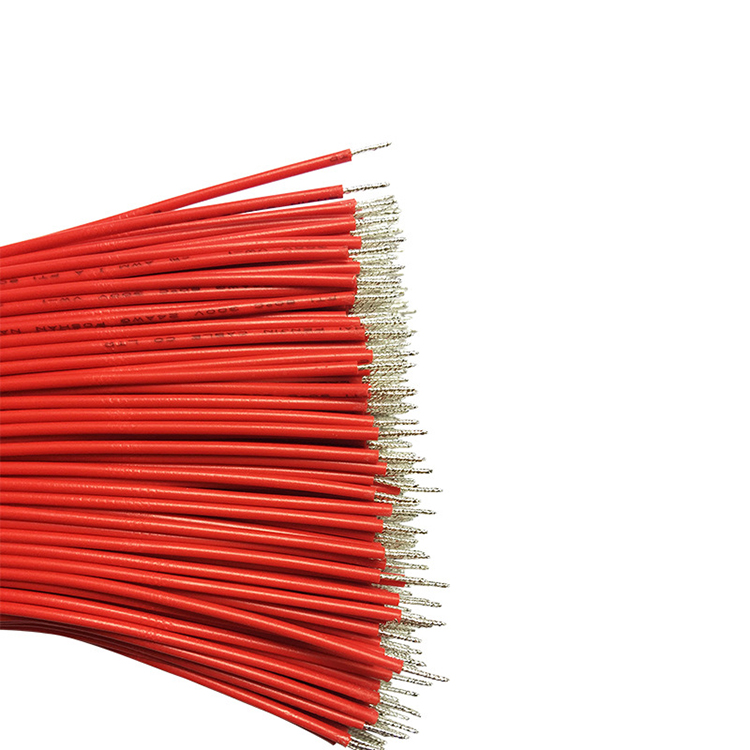

Product Design:
The UL Style 3266 Electronic Wire is constructed with stranded bare or tinned copper conductors for superior conductivity and flexibility. It uses cross-linked polyethylene (XLPE) insulation, offering high thermal stability and resistance to environmental stress. The wire is rated for temperatures up to 125°C and is suitable for both AC and DC applications. It meets standards such as UL 3266 and CSA C22.2, ensuring reliability and safety in various electrical systems.Product Advantages
Product Features
- Uniform Insulation Thickness: The wire features a uniform insulation thickness, which not only facilitates easy stripping and cutting but also ensures consistent electrical performance.
- Flame - Retardant: Having passed the UL FT2 flame test, the wire is highly flame - retardant, making it suitable for use in environments where fire safety is a priority.
- Versatile Applications: It is widely used in the internal wiring of electronic and electrical equipment, such as computers, communication devices, and household appliances.

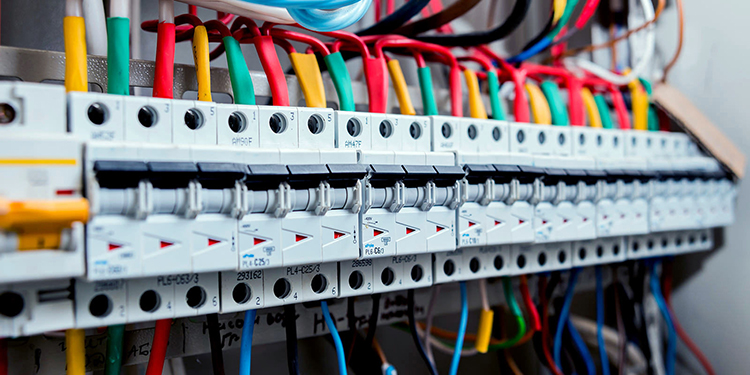

Product Applications
FAQ (Frequently Asked Questions)
1. Q: What is the UL Style 3266 Electronic Wire used for?
A:
The UL Style 3266 Electronic Wire is designed for internal wiring in electronic devices and electrical systems. It is suitable for applications such as motor leads, internal wiring of appliances, computers, test equipment, and other office and control equipment.
A:
The UL Style 3266 Electronic Wire is designed for internal wiring in electronic devices and electrical systems. It is suitable for applications such as motor leads, internal wiring of appliances, computers, test equipment, and other office and control equipment.
2. Q: What are the key features of the UL Style 3266 Electronic Wire?
A:The UL Style 3266 Electronic Wire features a rated temperature of 125°C and a rated voltage of 300V AC. It uses cross-linked polyethylene (XLPE) insulation, which is flame-retardant and passes the UL VW-1 and CSA FT1 vertical flame tests. It is available in various AWG sizes from 30 to 10, with options for solid or stranded, tinned or bare copper conductors.
3. Q: What applications is the UL Style 3266 Electronic Wire suitable for?
A:The UL Style 3266 Electronic Wire is suitable for a wide range of applications, including motor leads, internal wiring of appliances, computers, test equipment, and other office and control equipment. It provides reliable power and signal transmission for these devices.
4. Q: How should I install and use the UL Style 3266 Electronic Wire?
A:Ensure the wire is installed in accordance with local electrical codes and standards. Avoid excessive bending or stretching. Use appropriate connectors and terminations to ensure a secure connection. Regularly inspect the wire for any signs of damage or wear.
5. Q: How should I maintain the UL Style 3266 Electronic Wire?
A:Regularly inspect the wire for physical damage or wear. Keep the wire clean and free from dirt and debris. Ensure connections are secure and free from corrosion. Replace the wire immediately if any damage is detected.
6. Q: Is the UL Style 3266 Electronic Wire environmentally friendly?
A:Yes, the UL Style 3266 Electronic Wire is environmentally friendly. It meets RoHS standards and uses halogen-free materials, making it suitable for eco-friendly applications.
7. Q: What standards does the UL Style 3266 Electronic Wire comply with?
A:The UL Style 3266 Electronic Wire complies with standards such as UL 3266 and CSA AWM, ensuring quality and safety for various electrical systems.
